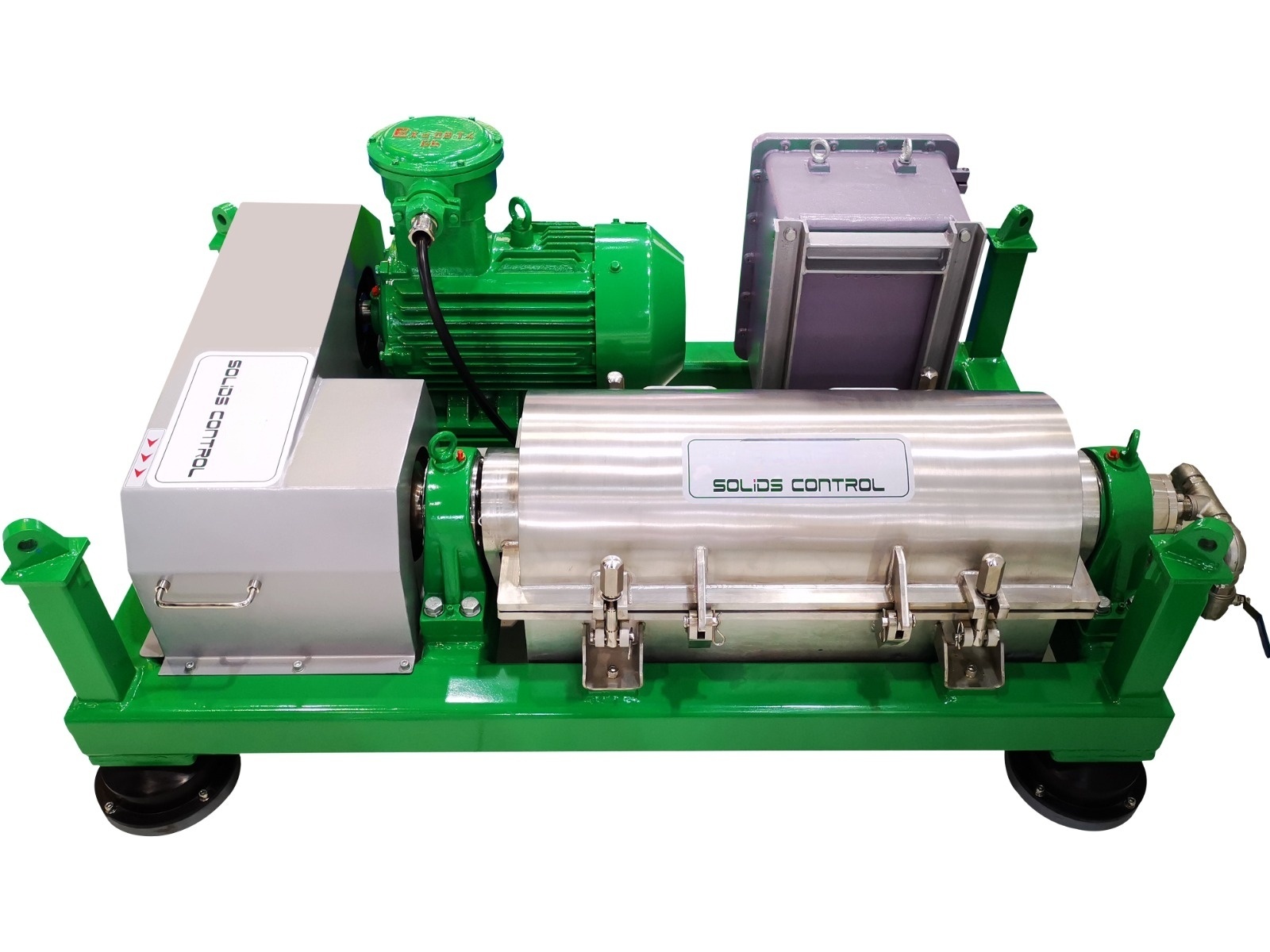

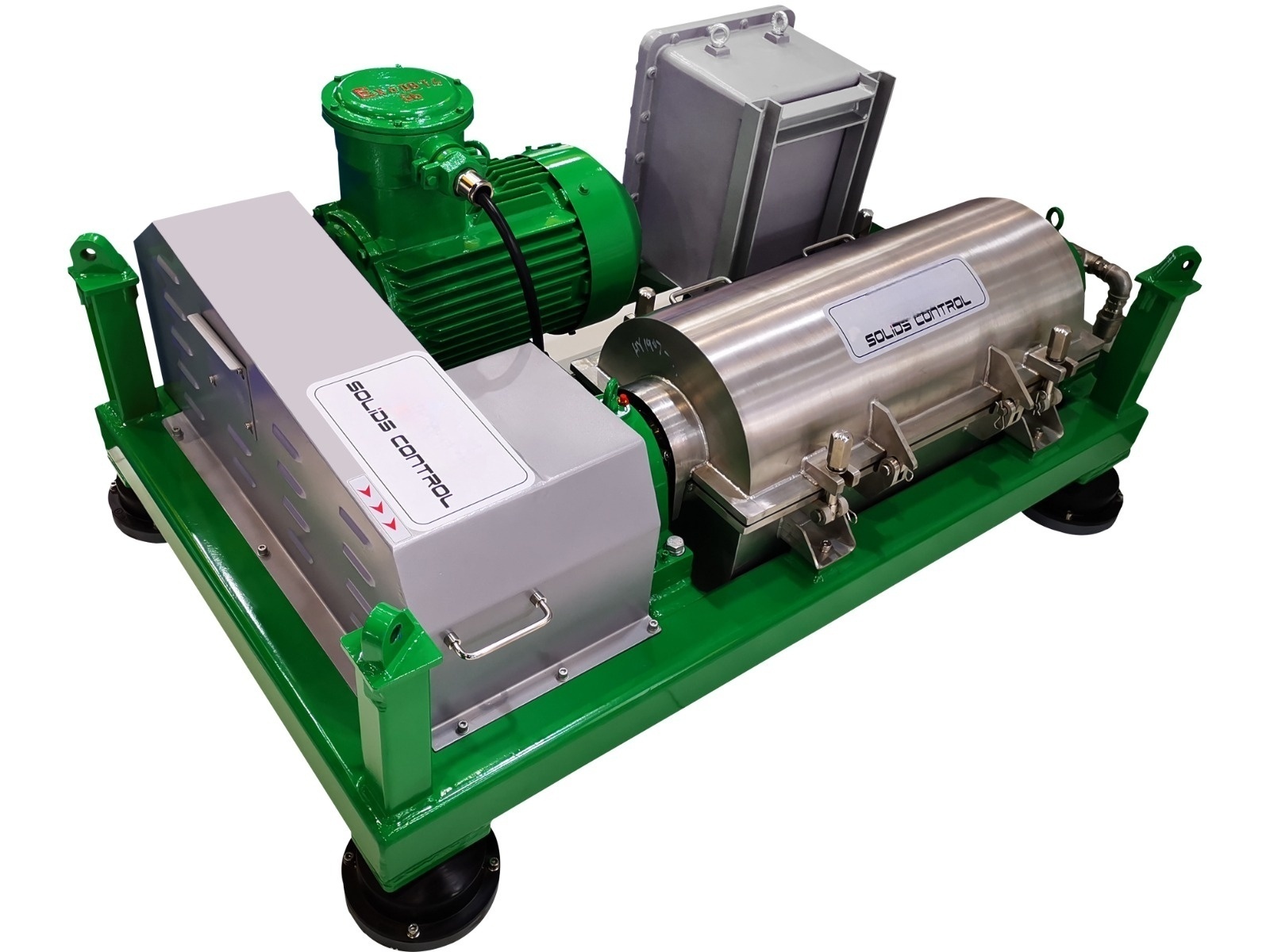

Decanter Centrifuge-224EP-VFD
Patent Design with the economic configuration for the centrifuge
Centrifuge Bowl Cylindrical and Conical section made from Duplex Stainless Steel 2205 by centrifugal casting or SS 304 Material
Other Parts of the bowl assembly material: stainless steel SS304.
Screw protection: Ceramic Tiles for longer life and easier replacement.
Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
Easily adjustable liquid discharge weir height for flexible application.
Bowl assembly supported by tighten belt for protection of bearing inmoving.
Pressurized EX Proof VFD control cabinet for the centrifuge
Decanter Centrifuge with Genuine NSK/FAG bearing
| Model | 224EP-VFD |
| Bowl Diameter | 220mm(9inch) |
| Bowl Length | 924mm(36.4inch) |
| Max. Capacity | 40GPM(9m³/h) |
| Effective Capacity | 26GPM(6m³/h) |
| Max Bowl Speed | 4500RPM |
| Typical Bowl Speed | 0~3800RPM |
| Max G-Force | 2492 |
| Typical G-Force | 1777 |
| Separation point | 2~5micron |
| Differential Speed | 10/20/30 |
| Gearbox Torch | 500N.M |
| Gear Box Ration | 35:01:00 |
| Main Drive Motor | 11Kw(15HP) |
| Back Drive Motor | N/A |
| Recommend Pump | 3Kw |
| EX Standard | |
| Electric Carbinet | Exd Standard |
| Weight | 850KG |
| Dimension | 1924x1050x725mm |
